Made of pure supple foam bonded to a seamless, durable, vinyl-backed cover. Its polypropylene seat base won’t sag, rot, or warp despite daily abuse and repeated washings.

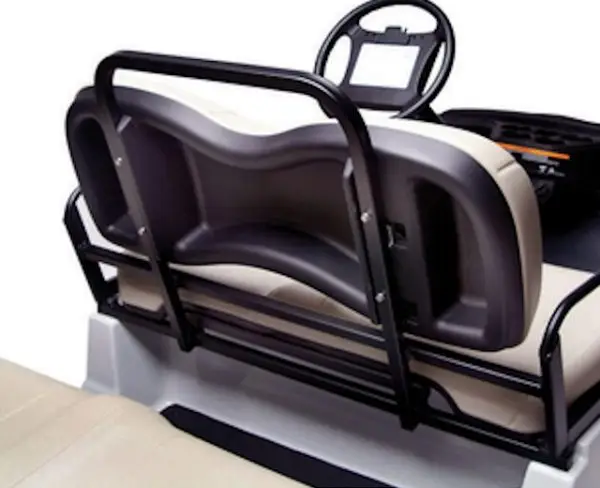

This rugged, powder-coated steel handle provides additional security and comfort for rear seat passengers.

Engine Type
Hitachi AC 48-volt high-efficiency, shunt wound motor with internal solid state tachometer
Output Rating (KW):
5
Engine Management:
NEOS 350 amp AC controller by Toyota Industries Corporation.
Starter System:
Six 8-volt Trojan T875 Batteries
Max Speed (KPH):
31.0
Seating Capacity:
4
Frame Type:
Automotive style HybriCore™ Chassis, polyester/urethane powder topcoat
Steering:
Self-compensating double reduction helical rack-and-pinion
Suspension Front:
Tru-Trak II fully independent automotive-style strut suspension
Suspension Rear:
Swing arm with coil springs over hydraulic shock absorbers
Breaks:
Self adjusting rear drum
Tyres Front:
205/65-10 DOT (4 ply rating)
Tyres Rear:
205/65-10 DOT (4 ply rating)
Length (mm):
3250
Width (mm):
1210
Height (mm):
1910
Wheelbase (mm):
2492
Ground Clearance (mm):
148
Dry Weight (kg):
349
Minimum Turning Radius (mm):
4560
